Моделирование и исследование обрабатывающего участка цеха, производящего обработку деталей

21 LINK 205 0 0

OTK 22 TERMINATE 0 0 0

23 GENERATE 1 0 0

24 TERMINATE 1 0 0

25 GENERATE 1 0 0

FFF 26 MARK 498 0 0

27 TEST 498 0 0

28 SAVEVALUE 498 0 0

29 UNLINK 498 0 0

30 ADVANCE 498 1 0

31 TRANSFER 497 0 0

ABC1 32 TERMINATE 498 0 0

33 GENERATE 1 0 0

KKK 34 MARK 505 0 0

35 TEST 505 0 0

36 SAVEVALUE 505 0 0

37 UNLINK 505 0 0

38

ADVANCE 505 1 0

39 TRANSFER 504 0 0

ABC2 40 TERMINATE 505 0 0

FACILITY ENTRIES UTIL. AVE. TIME AVAIL. OWNER PEND INTER RETRY DELAY

STAN1 769 0.606 39.427 1 0 0 0 0 0

STAN2 393 0.472 60.067 1 0 0 0 0 0

USER CHAIN SIZE RETRY AVE.CONT ENTRIES MAX AVE.TIME

BUF2 100 0 48.837 1103 101 2213.843

BUF1 0 0 0.066 205 3 16.214

SAVEVALUE RETRY VALUE

PROST 0 421.101

FEC XN PRI BDT ASSEM CURRENT NEXT PARAMETER VALUE

1109 0 50006.438 1109 0 1

4 0 50024.776 4 38 39

3 0 50057.518 3 30 31

1110 0 100000.000 1110 0 23

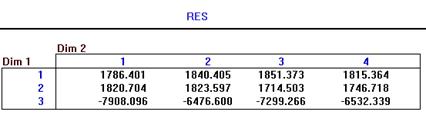

Результаты дисперсионного анализа при TAU = 10, 17, 30:

11/09/10 21:08:33 Model Translation Begun.

11/09/10 21:08:33 Ready.

11/09/10 21:09:08 include "t2.txt"

11/09/10 21:09:08 Simulation in Progress.

11/09/10 21:09:08 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:08 Simulation in Progress.

11/09/10 21:09:08 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Reporting in 1chast.75.1 - REPORT Window.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:09 Simulation in Progress.

11/09/10 21:09:09 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:10 Simulation in Progress.

11/09/10 21:09:10 The Simulation has ended. Clock is 50000.000000.

11/09/10 21:09:32 SHOW anova (res,2,1)

11/09/10 21:09:32

11/09/10 21:09:32 ANOVA

11/09/10 21:09:32 _

11/09/10 21:09:32 Source of Sum of Degrees of Mean Square F Critical Value

11/09/10 21:09:32 Variance Squares Freedom of F (p=.05)

11/09/10 21:09:32 _

11/09/10 21:09:32 A 209051347.522 104525673.761 668.815 4.26

11/09/10 21:09:32 _

11/09/10 21:09:32 Error 1406564.869 9 156284.985

11/09/10 21:09:32 Total 210457912.392 11

11/09/10 21:09:32

11/09/10 21:09:32

11/09/10 21:09:32 Treatment

Level Count Mean Minimum Maximum 95% C.I. (SE)

11/09/10 21:09:32 A

11/09/10 21:09:32

11/09/10 21:09:32 1 4 1823.386 1786.401 1851.373 (1376.269, 2270.503)

11/09/10 21:09:32 2 4 1776.381 1714.503 1823.598 (1329.264, 2223.498)

11/09/10 21:09:32 3 4 -7054.076 -7908.097 -6476.600 (-7501.193,-6606.959)

11/09/10 21:09:32 _

11/09/10 21:09:32 395.3289586

По результатам таблицы ANOVA видно, что параметр TAU является очень важным, так как его F-статистика намного превышает Fкр (668.815 > 4.26).

2.6 Отсеивающий эксперимент

Проведем отсеивающий эксперимент для определения наиболее важных факторов, влияющих на моделируемую систему. И выберем варьируемые величины исходя из результата опыта [1].

Текст программы GPSS:

TAU EQU 17

ZADEL EQU 3

OHE EQU 20

KRIT VARIABLE (2#N$ABC1+2#N$ABC2)-2#N$OTH-0.1#X$PROST-1#N$OTK

NORM1 VARIABLE (NORMAL(1,40,5))

NORM2 VARIABLE (NORMAL(1,60,10))

ERL3 VARIABLE (GAMMA(1,0,TAU, 3))

RAVNOM VARIABLE (UNIFORM(1,80,120))

GENERATE V$ERL3

ASSIGN 1,0

GATE NU STAN1,BBB

AAA1 SEIZE STAN1

ADVANCE V$NORM1

RELEASE STAN1

UNLINK BUF1,AAA1,1

TRANSFER .04,,DDD

EEE LINK BUF2,FIFO

DDD ASSIGN 1+,1

TEST L P1,2,OTH

TRANSFER ,BBB

OTH TERMINATE

BBB GATE NU STAN2,CCC

AAA2 SEIZE STAN2

ADVANCE V$NORM2

RELEASE STAN2

UNLINK BUF1,AAA2,1

TRANSFER .08,EEE,DDD

CCC TEST L CH$BUF1,OHE,OTK

LINK BUF1,FIFO

OTK TERMINATE

GENERATE 50000

TERMINATE 1

GENERATE ,,,1

FFF MARK

TEST GE CH$BUF2,1

SAVEVALUE PROST+,M1

UNLINK BUF2,ABC1,1

ADVANCE V$RAVNOM

TRANSFER ,FFF

ABC1 TERMINATE

GENERATE ,,,1

KKK MARK

TEST G CH$BUF2,ZADEL

SAVEVALUE PROST+,M1

UNLINK BUF2,ABC2,1

ADVANCE V$RAVNOM

TRANSFER ,KKK

ABC2 TERMINATE

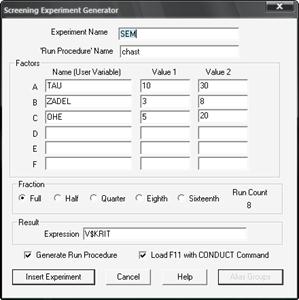

Рис.1. Диалоговое окно генератора отсеивающего эксперимента

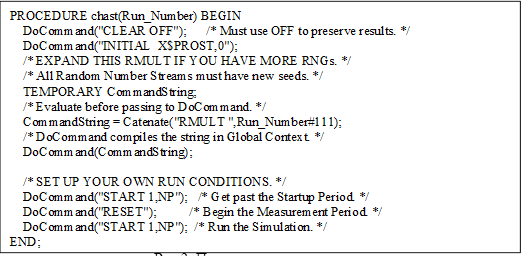

Рис.2. Процедура запуска модели

11/09/10 21:42:30 Model Translation Begun.

11/09/10 21:42:30 Ready.

11/09/10 21:42:30 SEM Procedure registered.

11/09/10 21:42:30 SEM_GETRESULT Procedure registered.

11/09/10 21:42:30 CHAST Procedure registered.

11/09/10 21:42:35 CONDUCT SEM()

11/09/10 21:42:35 **** Experiment in Progress. ****

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 50000.000000.

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 100000.000000.

11/09/10 21:42:35 "Run 1. Yield=1957.381969130512. TAU=10; ZADEL=3; OHE=5;"

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 50000.000000.

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 100000.000000.

11/09/10 21:42:35 "Run 2. Yield=1971.143408568981. TAU=10; ZADEL=3; OHE=20;"

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 50000.000000.

11/09/10 21:42:35 Simulation in Progress.

11/09/10 21:42:35 A Simulation in an Experiment has ended. Clock is 100000.000000.

11/09/10 21:42:35 "Run 3. Yield=1924.628865799248. TAU=10; ZADEL=8; OHE=5;"

11/09/10 21:42:36 Simulation in Progress.

11/09/10 21:42:36 A Simulation in an Experiment has ended. Clock is 50000.000000.

11/09/10 21:42:36 Simulation in Progress.

11/09/10 21:42:36 A Simulation in an Experiment has ended. Clock is 100000.000000.

11/09/10 21:42:36 "Run 4. Yield=1929.92535412587. TAU=10; ZADEL=8; OHE=20;"
